Centralized Branch Box Design for Los Angeles Homes

If you are planning a multi-zone HVAC upgrade in Los Angeles, the most critical component isn’t the thermostat on your wall; it’s the hidden hub managing the refrigerant flow. Choosing a centralized branch box design transforms a complex web of piping into a streamlined, high-performance network. You likely want precise temperature control in every room without the clutter of multiple outdoor units or the anxiety of refrigerant leaks buried deep within your home’s drywall. It’s a valid concern for any homeowner who values both aesthetic minimalism and mechanical reliability.

This article explains how a centralized architecture improves refrigerant distribution, boosts system efficiency, and ensures long-term serviceability. You’ll learn how this setup helps your home meet the rigorous requirements of the 2026 Title 24 energy standards while maximizing your eligibility for local heat pump rebates. We will also cover why strategic placement of the branch box is the key to a quiet, efficient system that remains easy to inspect for decades to come.

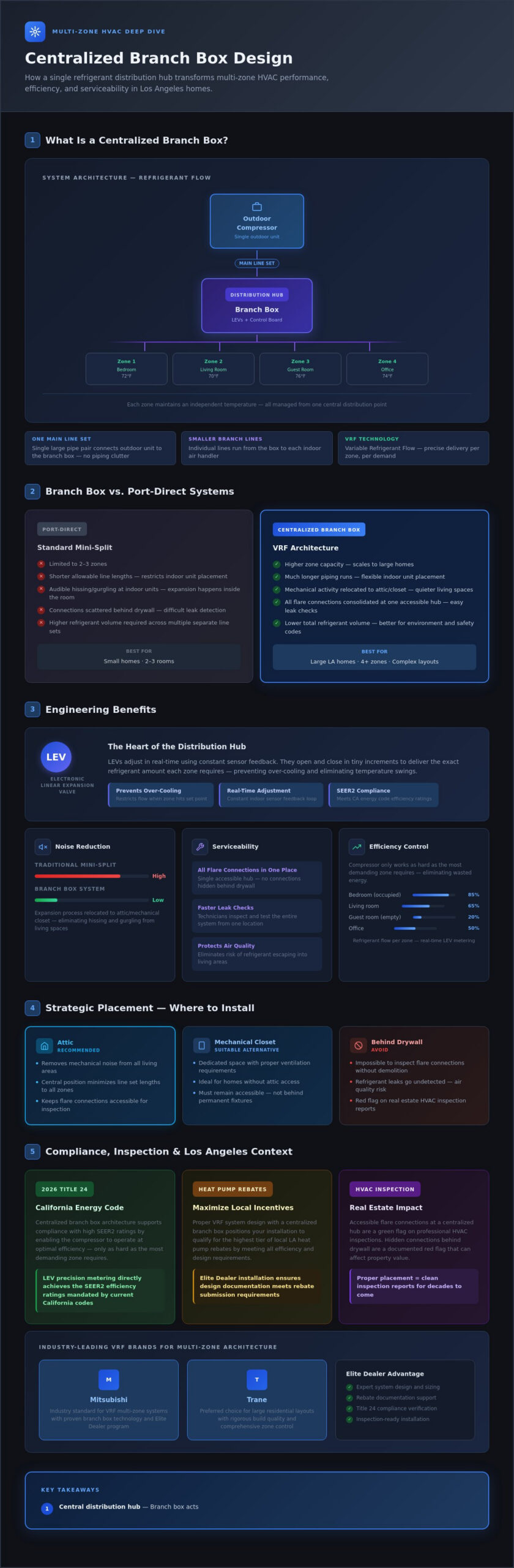

What is Centralized Branch Box Design in Modern HVAC?

A centralized branch box design serves as the primary distribution hub for refrigerant in a multi-zone heat pump or mini-split system. Instead of running multiple separate line sets from an outdoor unit to every room, this architecture uses one large pair of main lines that connect to a single distribution box. From this central point, smaller lines branch out to individual indoor units. This layout is common in residential Variable Refrigerant Flow (VRF) systems; it provides a sophisticated method for managing climate control across large properties with varying cooling demands.

The branch box is far more than a passive junction. It contains critical mechanical components, including Electronic Linear Expansion Valves (LEVs) and integrated control boards. These LEVs act as precise gatekeepers. They open and close in tiny increments to deliver the exact amount of refrigerant needed to satisfy the temperature setting in a specific room. The control board facilitates constant communication between the indoor air handlers and the outdoor compressor. This ensures the entire system operates at peak efficiency without wasting energy on unoccupied spaces or over-cooling smaller rooms.

Branch Box vs. Port-Direct Systems

In smaller HVAC installations, contractors often use port-direct systems where the outdoor unit has multiple connection points built into its chassis. While functional for two or three zones, this approach creates limitations for larger Los Angeles homes. Port-direct systems typically have shorter allowable line lengths, which can restrict where you place your indoor units. By contrast, a centralized branch box design enables much longer piping runs and higher zone capacities. This flexibility allows for more complex architectural layouts while potentially reducing the total volume of refrigerant required. Lower refrigerant volume is a significant benefit; it aligns with modern safety standards and minimizes the environmental impact of the system.

The Evolution of Multi-Zone Refrigerant Flow

HVAC technology has transitioned from simple on-and-off cycles to the nuanced, variable flow we see today. Early multi-zone systems often suffered from refrigerant noise, such as hissing or gurgling, because the expansion process happened right at the indoor unit. Centralized boxes move much of this mechanical activity to a remote location, such as an attic or mechanical closet. This results in a quieter living environment. This design also significantly improves long-term serviceability. By consolidating flare connections at a single accessible hub, technicians can perform leak checks and inspections more efficiently. This reduces the risk of refrigerant escaping from connections hidden behind drywall, protecting both your home’s air quality and your investment in the system.

The Engineering Benefits of Centralized Refrigerant Distribution

A centralized branch box design provides superior control compared to decentralized setups. It allows for the precise metering of refrigerant to each zone, ensuring that a bedroom stays at 72 degrees while an unused guest room remains at a higher, energy-saving temperature. Adhering to industry design and installation guidelines ensures these systems operate within their engineered tolerances. This level of control is essential for modern Los Angeles homes where room usage fluctuates throughout the day and solar heat gain varies by floor. By managing the flow from a single point, the system maintains a steady state more effectively than systems that rely on multiple individual connections at the outdoor unit.

Electronic Linear Expansion Valves (LEV)

These valves are the heart of the distribution hub. They adjust in real-time based on constant data feedback from indoor sensors. If a zone reaches its set point, the LEV restricts flow to prevent “over-cooling,” which is a common issue in homes with varying sun exposure or insulation quality. This prevents the uncomfortable temperature swings often associated with older HVAC technology. The precision of LEV technology directly correlates to achieving the high SEER2 efficiency ratings required by current California energy codes, as it ensures the compressor only works as hard as the most demanding zone requires.

Noise Mitigation and Decibel Control

Traditional mini-splits often place the expansion valve inside the indoor unit. This can cause audible hissing or gurgling as refrigerant changes state from liquid to gas. Centralized branch box design moves this mechanical process to a remote location like an attic or a dedicated mechanical closet. This is a game-changer for “sleeping zones” where silence is a priority. Indoor units in these systems often operate at decibel levels as low as 19 to 22 dB; this is significantly quieter than a whisper or a standard window air conditioner. Moving the “noise” of the refrigerant expansion away from the bedroom wall creates a more peaceful environment.

Wiring is also simplified because power and communication cables typically follow the refrigerant lines from the outdoor unit to the branch box. This reduces the complexity of the electrical run and minimizes the number of penetrations through your home’s framing. For future maintenance, a technician can access the central interface in the branch box to pull diagnostic codes for the entire multi-zone network. This avoids the need to dismantle every indoor unit just to find a single sensor error. This level of transparency is a key reason why we recommend a detailed system evaluation before completing a high-stakes real estate transaction or major renovation.

Optimizing System Architecture for Large Residential Layouts

Successful implementation of a centralized branch box design depends on strategic placement within the home’s footprint. Large Los Angeles residences often feature sprawling layouts that require careful planning to maintain thermal efficiency. Common installation sites include attics, mechanical closets, or crawlspaces. Each location presents specific trade-offs. An attic might offer a central point for all rooms but subjects the equipment to higher ambient temperatures. A mechanical closet provides a controlled environment and easier access for technicians. The goal is to minimize the distance between the hub and the indoor units to reduce energy loss.

Calculating maximum line lengths is a critical step in the design phase. While these systems allow for extensive piping, exceeding the manufacturer’s specified limits causes pressure drops that degrade cooling capacity. We also recommend balancing the “spokes” of the system. Keeping the piping distances between the branch box and the indoor units relatively equal ensures consistent refrigerant distribution. If you’re planning a phased renovation, it’s wise to select a box with “dead ports.” These are unused connection points that allow you to add indoor units in the future without reworking the primary refrigerant network.

The “Hub-and-Spoke” Advantage

This architecture simplifies the home’s mechanical footprint by replacing a “spaghetti” of individual lines with a organized layout. By running one main line set to a central hub, you significantly reduce the total linear feet of copper piping required. This streamlined approach makes a professional ductwork inspection and refrigerant line tracing much more straightforward. Technicians can quickly identify which line serves which zone, which reduces labor time during diagnostic visits. It also limits the number of penetrations through the home’s exterior, preserving the building’s envelope and aesthetic appeal.

Accessibility and Service Clearance

Accessibility is a non-negotiable requirement for any high-performance system. Adhering to California Energy Code HVAC requirements ensures that all mechanical equipment has sufficient clearance for inspection and repair. “Burying” a branch box behind drywall without a dedicated access panel is a catastrophic design error. It forces future homeowners to tear out finished walls just to check a connection or replace a sensor. We also advocate for the installation of a secondary drain pan under the branch box. Since these units manage refrigerant expansion, they can produce condensation. A pan equipped with a float switch provides an essential layer of protection against water damage to your ceilings or floors.

Avoiding Design Failures: An Inspector’s Perspective

A centralized branch box design represents a significant investment in home comfort, but poor execution can turn this asset into a liability. During a professional real estate HVAC inspection, we frequently identify flare connections as primary failure points. These mechanical joints are prone to refrigerant leaks if they aren’t torqued to exact manufacturer specifications. If these connections are buried behind drywall or tucked into inaccessible corners, a minor leak becomes a major demolition project. We also look for proper insulation on the “branch” side of the box. Because refrigerant changes state within the hub, these lines can reach very low temperatures. Without continuous, high-quality insulation, the copper will sweat; this leads to hidden moisture accumulation and eventual mold growth within your ceiling or wall cavities.

Condensate management is another area where many installers fall short. In the humid coastal air of Los Angeles, centralized equipment generates significant moisture. A failure to provide a secondary drain pan or a functional float switch is a major red flag. If the primary drain clogs, water will overflow directly into your home’s structure. We verify that every installation includes a clear, gravity-fed or pump-assisted path for this water to exit the building safely. Addressing these technical details during the initial setup prevents costly emergency repairs later.

Escrow and Compliance Issues

Unpermitted or non-compliant HVAC work is one of the most common reasons home sales stall in Southern California. We verify that all centralized systems meet the 2026 Title 24 standards and NAECA requirements. Local building departments in Los Angeles strictly enforce accessibility rules for branch boxes to ensure future safety. A clean, well-organized branch box installation is a clear signature of a high-quality ac installation. If you are preparing to buy or sell a property, ensure the system’s documentation and physical layout match current regional codes to avoid delays at the closing table.

Thermal Management in Los Angeles Attics

The microclimates of the South Bay and Westside present unique challenges. In cities like Torrance or Manhattan Beach, attic temperatures can easily exceed 140 degrees during a summer heatwave. This intense heat puts extreme stress on the electronic control boards housed within a centralized branch box. Protecting these components requires strategic placement near attic vents or the installation of radiant barriers to deflect solar heat. During a routine furnace maintenance check, we look for signs of heat-related board failure, such as discoloration or brittle wiring. Ensuring your distribution hub stays cool is vital for the longevity of the entire multi-zone system.

If you are concerned about the health or compliance of your current system, book a comprehensive HVAC evaluation today to protect your property’s value.

Implementing Professional HVAC Solutions in Los Angeles

Selecting the right hardware is the first step toward a reliable multi-zone system. Mitsubishi and Trane have established themselves as the gold standards for these installations because their engineering handles the complexities of variable refrigerant flow better than entry-level brands. Working with a Mitsubishi Ductless Elite Dealer is particularly advantageous. These professionals receive specialized training in centralized branch box design, ensuring that the hub is sized correctly for the total cooling load of all connected zones. This expertise prevents common performance issues like insufficient cooling in the furthest “spoke” of the system or premature compressor wear caused by improper refrigerant balancing.

Coastal Los Angeles presents a harsh environment for mechanical systems. In communities like Hermosa Beach and Redondo Beach, salt-air corrosion can destroy an unprotected outdoor condenser in less than a decade. High-performance systems designed for these areas often include specialized coatings on the coils to resist the corrosive effects of the marine layer. A centralized design offers a secondary layer of protection; it allows the most sensitive electronic components, such as the expansion valves and control boards, to be housed inside the home’s envelope rather than being exposed to the humid, salty air. Choosing equipment with SEER2 ratings that exceed the 15.2 minimum is also a sound financial strategy, as Southern California utility rates continue to rise.

Custom Design for Coastal Climates

Designing for the coast requires more than just picking a high-efficiency unit. It involves calculating the specific thermal loads of homes that often feature large glass windows and open floor plans. A centralized branch box design allows for a more flexible interior layout, as the smaller refrigerant lines are easier to route through tight coastal framing than traditional bulky ductwork. This architecture ensures that even on the hottest days in the South Bay, your system maintains a steady, efficient output without the energy spikes common in older, single-stage equipment.

The HVAC Inspections Los Angeles Difference

The complexity of these modern systems requires a shift in how we approach maintenance and verification. A standard home inspection rarely goes deep enough to evaluate the technical health of a multi-zone network. We provide technical system evaluations that look at the data behind the comfort. We act as a neutral third party, providing homeowners and buyers with an objective assessment of whether a system was designed and installed correctly. We don’t use inspections as a pretext to sell you a new unit; our only goal is to verify that your investment is safe, efficient, and compliant with local standards.

If you’re investing in a sophisticated centralized branch box design, don’t leave its long-term health to chance. Whether you’re in the middle of a high-stakes real estate transaction or simply want to ensure your system is ready for the next heatwave, professional verification is essential. Schedule your professional evaluation today to gain a factual, expert-level understanding of your home’s HVAC health.

Securing the Future of Your Multi-Zone Climate Control

Implementing a centralized branch box design is a strategic decision that enhances the longevity and efficiency of your home’s HVAC system. By consolidating refrigerant distribution into a manageable hub, you ensure that your property remains compliant with the 2026 California Energy Code while providing superior, quiet comfort in every room. This architecture doesn’t just improve performance; it protects your home’s resale value by making future inspections and repairs straightforward and transparent. It’s a professional approach to residential climate management that prioritizes both mechanical health and aesthetic minimalism.

Our team brings the precision of certified NATE technicians and the specialized expertise required for high-stakes real estate inspections to every evaluation. As a Mitsubishi Ductless Elite Dealer, we understand the nuances of multi-zone technology and the specific demands of the Los Angeles climate. We provide the neutral, evidence-based assessments you need to maintain a safe and high-performing home. Request an Expert HVAC Evaluation for Your Los Angeles Home today to verify your system’s health. You deserve the confidence that comes with a perfectly balanced and professionally verified climate control system.

Frequently Asked Questions

What is the main benefit of a centralized branch box design?

The primary advantage of a centralized branch box design is the ability to manage complex multi-zone layouts with a single set of main refrigerant lines. This architecture ensures precise refrigerant metering to each room, which leads to consistent temperatures and lower energy consumption. It also reduces the number of flare connections hidden behind walls, significantly lowering the risk of undetected leaks in your Los Angeles home.

Where should a branch box be installed for the best performance?

For peak performance, a branch box should be installed in a centrally located, accessible area such as an attic, crawlspace, or mechanical closet. Strategic placement minimizes the length of the piping to each indoor unit, which maintains pressure and efficiency. It is vital that the location allows for sufficient clearance to ensure technicians can perform safety inspections and maintenance without obstruction.

Can I use a branch box with any brand of mini-split?

No, branch boxes are not universal and must match the brand of your outdoor condenser and indoor air handlers. Manufacturers like Mitsubishi and Trane use proprietary communication protocols to manage the Electronic Linear Expansion Valves (LEVs) inside the box. Attempting to mix brands will cause system communication failures and will void the manufacturer’s warranty on your equipment.

How many indoor units can a single centralized branch box handle?

A single centralized branch box typically handles between three and eight indoor units, depending on the specific model and capacity of the outdoor unit. For very large Los Angeles estates, multiple branch boxes can be linked together to manage a dozen or more zones. This scalability makes the centralized design the preferred choice for properties with diverse cooling needs across multiple floors.

Does a centralized branch box require its own power supply?

Most residential branch boxes do not require a separate high-voltage power supply. They typically receive power and communication signals through a four-wire cable connected directly to the outdoor unit. This simplified wiring reduces installation complexity and labor costs. However, you must verify the specific electrical requirements of your chosen model during the design phase to ensure full compliance with local building codes.

Is a branch box system more expensive than a port-direct system?

While the initial equipment cost for a branch box system is often higher than a port-direct setup, the total project cost is frequently comparable for large homes. A centralized branch box design reduces the total linear feet of copper piping and insulation required. It also streamlines the labor needed for routing lines through the home’s structure, providing a more organized and serviceable mechanical footprint.

How often should a centralized branch box be inspected?

You should have your centralized branch box inspected at least once a year as part of a comprehensive HVAC maintenance plan. It is also critical to perform a technical evaluation during any real estate transaction to verify the integrity of the flare connections and the functionality of the condensate management system. Regular checks prevent minor sensor issues from escalating into expensive mechanical failures.

Will a branch box make my HVAC system louder?

A branch box system actually makes your living spaces quieter by moving the refrigerant expansion process away from the indoor air handler. In port-direct systems, the expansion noise can sometimes be heard through the bedroom wall. By relocating this activity to a remote attic or closet, the indoor units can operate at near-silent decibel levels, which is ideal for Los Angeles homeowners who prioritize a peaceful environment.
